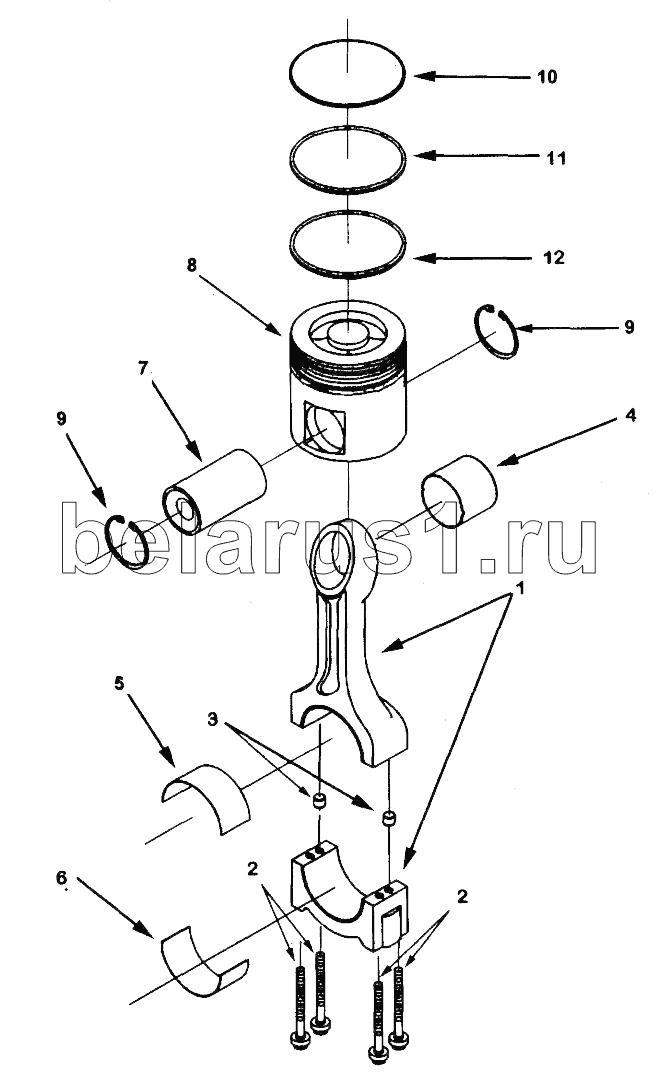

Каталог запасных частей к технике: Cummins QSX-15 I. PP2627 Engine Piston
1
2
2
3
4
5
6
7
8
9
9
10
11
12
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4059429 | 4059429 | Rod, Engine Connecting | |
| 3683008 | 3683008 | Ring, Compression Piston | |
| 3682398 | 3682398 | Ring, Oil Piston | |
| 3681078 | 3681078 | Ring, Compression Piston | |
| 4089406 | 4089406 | Set, Piston Ring | |
| 4059363 | 4059363 | Pin, Piston | |
| 3064305 | 3064305 | Ring, Retaining | |
| 4089411 | 4089411 | Kit, Engine Piston | |
| 4089406 | 4089406 | Set, Piston Ring | |
| 4089411 | 4089411 | Kit, Engine Piston | |
| 4101478 | 4101478 | Piston, Engine | |
| 4089405 | 4089405 | Set, Rod Bearing | |
| 1 | 4059449 | Rod, Engine Connecting | |
| 2 | 3678574 | Screw, Connecting Rod Cap | |
| 3 | 3678739 | Dowel, Ring | |
| 4 | 4059448 | Bushing | |
| 5 | 4059447 | Bearing, connecting Rod | |
| 6 | 3682166 | Bearing, Connecting Rod | |
| 7 | 4059363 | Pin, Piston | |
| 8 | 4101478 | Piston, Engine | |
| 9 | 3064305 | Ring, Retaining | |
| 10 | 3683008 | Ring, Compression Piston | |
| 11 | 3681078 | Ring, Compression Piston | |
| 12 | 3682398 | Ring, Oil Piston |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
