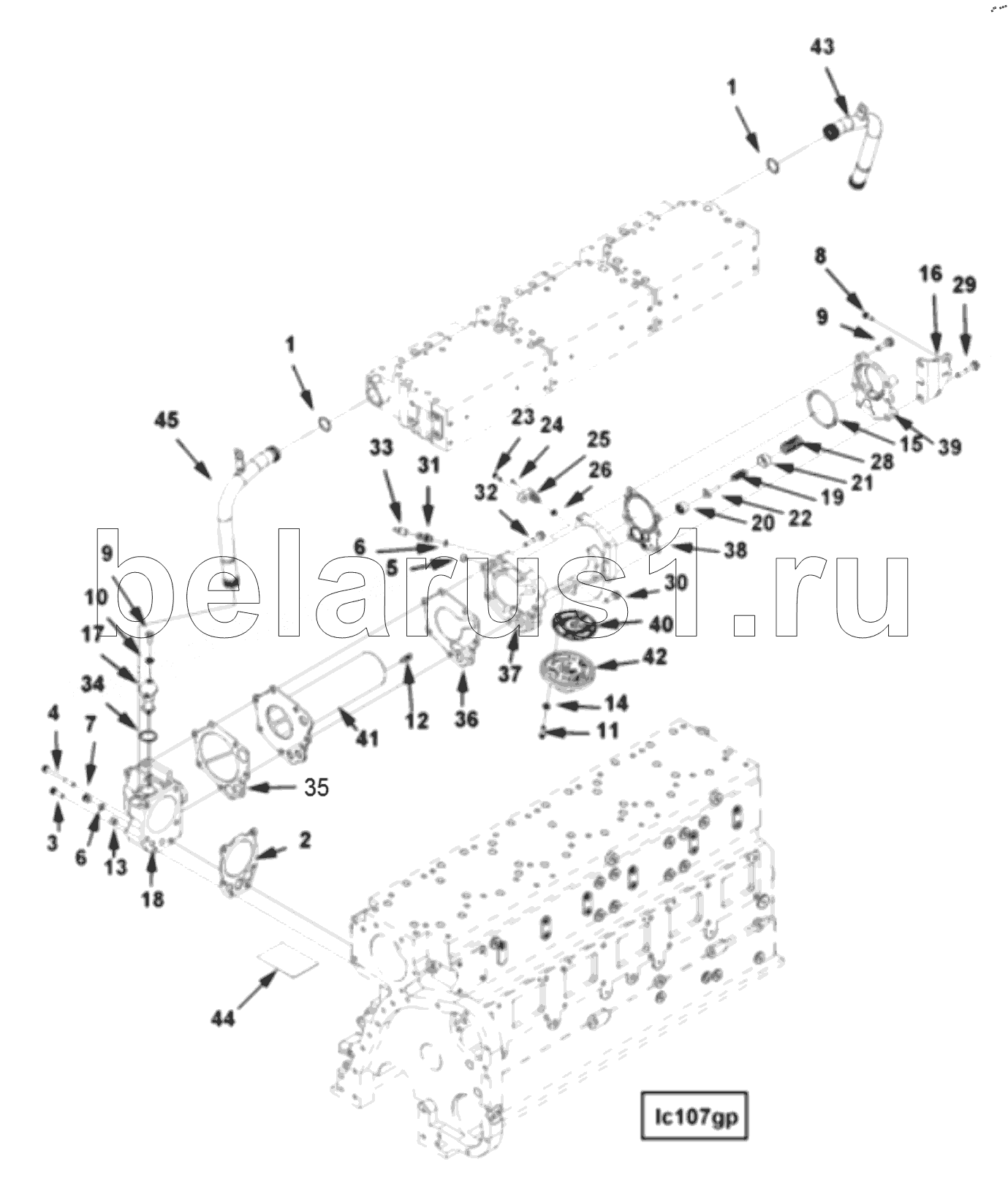

Каталог запасных частей к технике: Cummins QSNT-G. COOLER, ENGINE OIL LC 1767

1

1

2

3

4

5

6

6

8

9

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

28

29

30

31

32

34

35

36

37

38

40

41

42

44

45

Позиция на иллюстрации	Заводской номер детали		Название детали
3042619	3042619		Nipple, Coupling
3035028	3035028		ASSEMBLY, SENSING UNIT
4296439	4296439		OIL COOLER, ENGINE
1	212161		SEAL, O RING
2	3008017		GASKET, OIL COOLER SUPPORT
3	3010596		SCREW, CAPTIVE WASHER CAP
4	3010597		SCREW, CAPTiVE WASHER CAP
5	3013786		PLUG, PIPE
6	3037537		Seal, O Ring
8	3044901		SCREW5CAPTIVE WASHER CAP
9	S 117		SCREW HEXAGON HEAD
10	S 604		WASHER LOCK
11	212535		SCREW TWELVE POINT CAP
12	214345		DRAINCOCK
13	3008466		PLUG, PIPE
14	3017915		WASHER, PLAIN
15	4296501		SEAL, RECTANGULAR RING
16	4296503		BRACE, OIL COOLER
17	3023512		VALVE, BYPASS
18	4296495		SUPPORT, OIL COOLER
19	3030803		SPRING, COMPRESSION
20	3030804		PISTON, BYPASS VALVE
21	3030805		PISTON, PRESSURE SENSING
22	3030806		PLUNGER, BYPASS VALVE
23	3031005		SCREW, PAN HEAD CAP
24	101996		SCREW, PAN HEAD CAP
25	3030807		UNIT, SENDING
26	3030808		SEAL, 0 RING
27	3035624		SCREW, CAPTIVE WASHER CAP
28	3039296		SPRING, COMPRESSION
29	3040837		SCREW, CAPTIVE WASHER CAP
30	3040838		SCREW, CAPTIVE WASHER CAP
31	3042620		Nipple, Coupling
32	3044413		SCREW, CAPTIVE WASHER CAP
34	3045979		SEAL, O RING
35	4296496		GASKET, OIL COOLER CORE
36	4296497		GASKET, LUB OIL CLR HSG
37	4296498		HOUSING, OIL COOLER
38	4296500		GASKET, LUB OIL CLR COVE
39	4296502		COVER, LUB OIL COOLER
40	3070478		GASKET, FILTER HEAD
41	4296499		CORE, COOLER
42	3918334		HEAD, LUB OIL FILTER
44	4025950		DECAL, INFORMATION
45	4999531		TUBE, WATER TRANSFER

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
