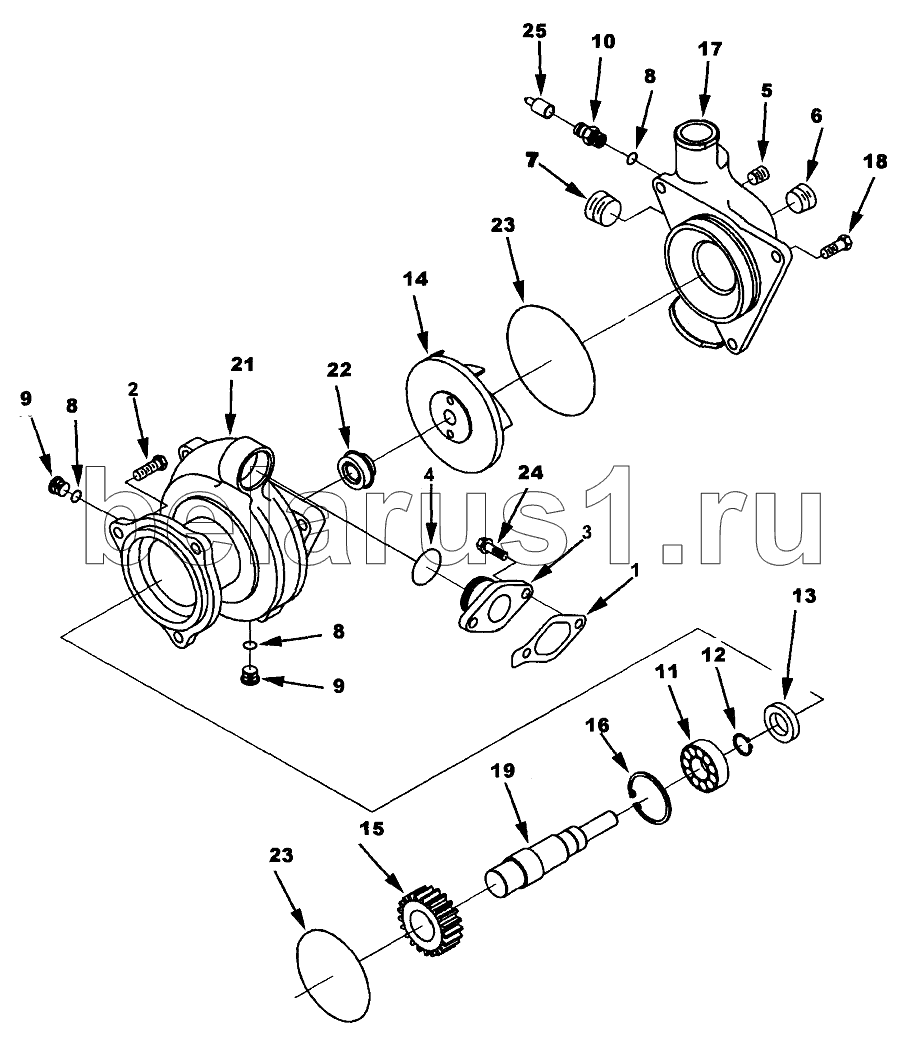

Каталог запасных частей к технике: Cummins QSM-11 Tier 3. Water Pump WP2705
1
2
3
4
5
6
7
8
8
8
8
8
9
9
10
11
12
13
14
15
16
17
18
19
21
22
23
23
24
25
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 3035679 | 3035679 | Impeller, Water Pump | |
| 3401009 | 3401009 | Pump, Water | |
| 160586 | 160586 | Ring, Retaining | |
| 3882774 | 3882774 | Seal, О Ring | |
| 4024817 | 4024817 | Kit, Water Pump Repair | |
| S16002 | S16002 | Bearing, Ball | |
| 3820791 | 3820791 | Seal, О Ring | |
| 4004911 | 4004911 | Seal, Water Pump | |
| 3064634 | 3064634 | Ring, Retaining | |
| 3019600 | 3019600 | Seal, Oil | |
| 3042619 | 3042619 | Nipple, Coupling | |
| 3800745 | 3800745 | Pump, Water | |
| 3401010 | 3401010 | Pump, Water TLA | |
| 3037536 | 3037536 | Plug, Threaded | |
| 3328559 | 3328559 | Connection, Water Transfer | |
| 1 | 3027924 | Gasket, Connection | |
| 2 | 3034836 | Screw, Hexagon Head Cap | |
| 3 | 3821718 | Connection, Water Transfer | |
| 4 | 3892095 | Seal, О Ring | |
| 5 | 3008468 | Заглушка трубки | |
| 6 | 3008469 | Заглушка трубки | |
| 7 | 3008470 | PLUG, PIPE | |
| 8 | 3037537 | Seal, O Ring | |
| 8 | 3037537 | Seal, O Ring | |
| 9 | 3040813 | Plug, Threaded | |
| 10 | 3042620 | Nipple, Coupling | |
| 11 | S16002 | Bearing, Ball | |
| 12 | 160586 | Ring, Retaining | |
| 13 | 3019600 | Seal, Oil | |
| 14 | 3035679 | Impeller, Water Pump | |
| 15 | 3038991 | Gear, Water Pump | |
| 16 | 3064634 | Ring, Retaining | |
| 17 | 3073695 | Cover, Water Pump | |
| 18 | 3335044 | Screw, Hexagon Head Cap | |
| 19 | 3400813 | Shaft, Water Pump | |
| 20 | 3820791 | Seal, О Ring | |
| 21 | 3882615 | Body, Water Pump | |
| 22 | 4004911 | Seal, Water Pump | |
| 23 | 3882774 | Seal, О Ring | |
| 24 | 3900631 | Винт с шестигранной головкой | |
| 25 | 3044896 | COVER, PROTECTIVE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
