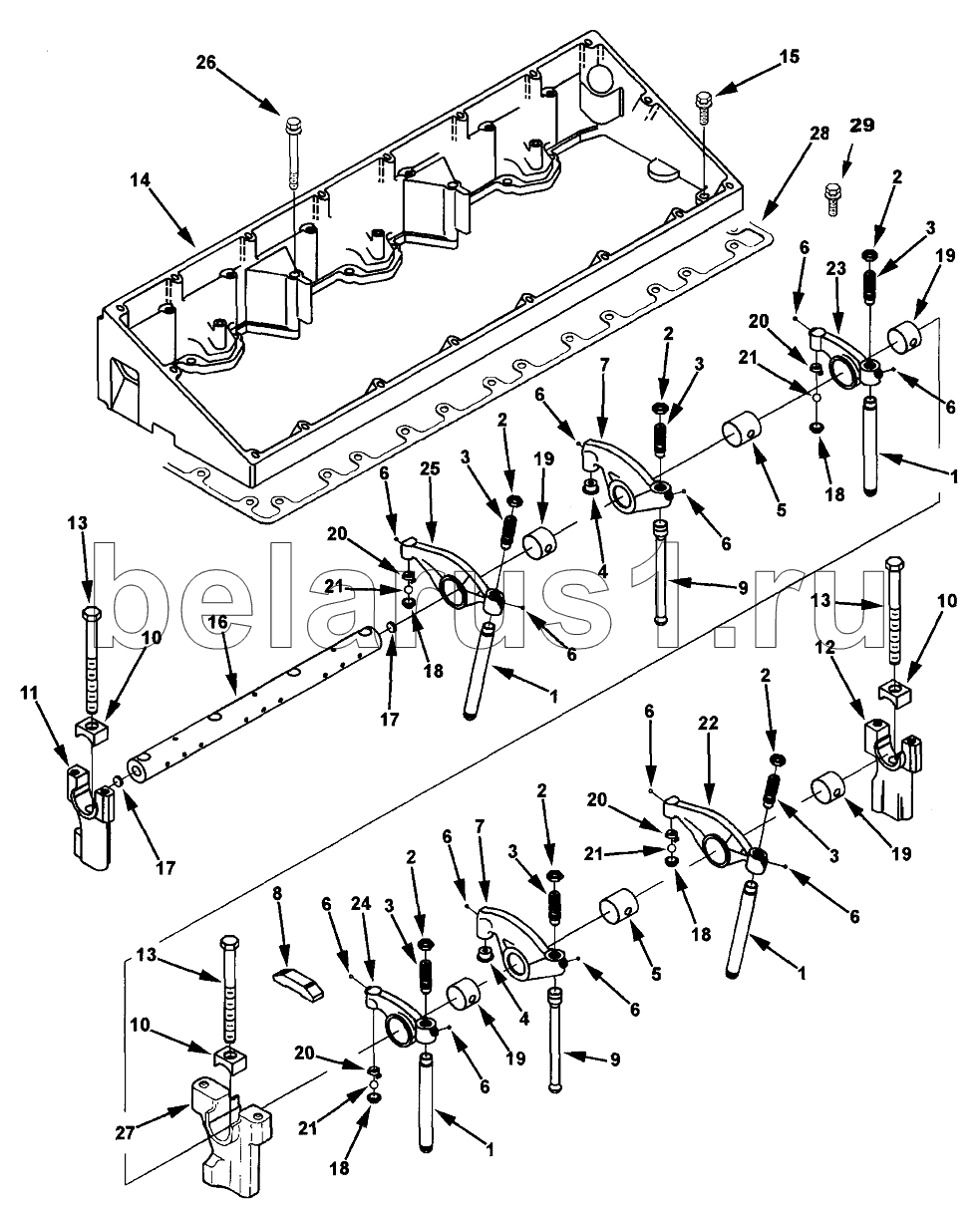

Каталог запасных частей к технике: Cummins QSM-11 Tier 3. Rocker Lever
1
1
1
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3
3
4
4
5
5
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
7
7
8
9
9
10
10
10
11
12
13
13
13
14
15
16
17
17
18
18
18
18
18
18
18
18
18
18
19
19
19
19
19
19
19
19
19
19
20
20
20
20
20
20
20
20
20
20
21
21
21
21
21
21
21
21
21
21
22
23
24
25
26
27
28
29
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4003912 | 4003912 | Lever, Rocker | |
| 4003907 | 4003907 | Lever, Rocker | |
| 4003911 | 4003911 | Lever, Rocker | |
| 4003908 | 4003908 | Lever, Rocker | |
| 4003913 | 4003913 | Lever, Rocker | |
| 4003909 | 4003909 | Lever, Rocker | |
| 4003914 | 4003914 | Lever, Rocker | |
| 4003910 | 4003910 | Lever, Rocker | |
| 3069020 | 3069020 | Lever, Rocker tla | |
| 3068948 | 3068948 | Lever, Rocker | |
| 1 | 3068390 | Rod, Push | |
| 2 | 3066257 | Nut, Regular Hexagon Jam | |
| 2 | 3066257 | Nut, Regular Hexagon Jam | |
| 2 | 3066257 | Nut, Regular Hexagon Jam | |
| 2 | 3066257 | Nut, Regular Hexagon Jam | |
| 2 | 3066257 | Nut, Regular Hexagon Jam | |
| 3 | 3066644 | Screw, Slotted Set | |
| 3 | 3066644 | Screw, Slotted Set | |
| 3 | 3066644 | Screw, Slotted Set | |
| 3 | 3066644 | Screw, Slotted Set | |
| 3 | 3066644 | Screw, Slotted Set | |
| 4 | 3066643 | Socket, Tappet | |
| 5 | 3067871 | Bushing | |
| 6 | 3067941 | Plug, Ball | |
| 6 | 3067941 | Plug, Ball | |
| 6 | 3067941 | Plug, Ball | |
| 6 | 3067941 | Plug, Ball | |
| 6 | 3067941 | Plug, Ball | |
| 7 | 3896642 | Lever, Rocker | |
| 8 | 3070175 | Crosshead, Valve | |
| 9 | 3076046 | Rod, Push | |
| 10 | 3077444 | Clamp, Retaining | |
| 11 | 3079661 | Support, Rocker Lever | |
| 12 | 3079662 | Support, Rocker Lever | |
| 13 | 3080722 | Screw, Hexagon Head Cap | |
| 14 | 3098722 | Housing, Rocker Lever | |
| 15 | 31610933417765 | Screw, Captive Washer Cap Shaft | |
| 16 | 3417767 | Shaft, Rocker Lever | |
| 17 | 4060417 | Plug, Expansion | |
| 18 | 3417922 | Socket, Rocker Lever | |
| 18 | 3417922 | Socket, Rocker Lever | |
| 18 | 3417922 | Socket, Rocker Lever | |
| 18 | 3417922 | Socket, Rocker Lever | |
| 19 | 3019733 | Bushing | |
| 19 | 3019733 | Bushing | |
| 19 | 3019733 | Bushing | |
| 19 | 3019733 | Bushing | |
| 20 | 3417923 | Retainer, Socket | |
| 20 | 3417923 | Retainer, Socket | |
| 20 | 3417923 | Retainer, Socket | |
| 20 | 3417923 | Retainer, Socket | |
| 21 | 3418003 | Plug, Ball | |
| 21 | 3418003 | Plug, Ball | |
| 21 | 3418003 | Plug, Ball | |
| 21 | 3418003 | Plug, Ball | |
| 22 | 4003903 | Lever, Rocker | |
| 23 | 4003904 | Lever, Rocker | |
| 24 | 4003905 | Lever, Rocker | |
| 25 | 4003906 | Lever, Rocker | |
| 26 | 3892105 | Screw, Captive Washer Cap | |
| 27 | 3893584 | Support, Rocker Lever | |
| 28 | 4070529 | Gasket, Rkr Lever Housing | |
| 29 | 4083245 | Screw, Captive Washer Cap |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
