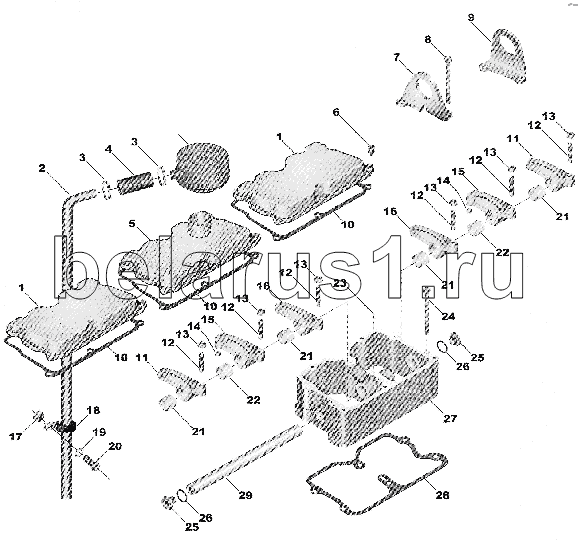

Каталог запасных частей к технике: Cummins NT855-C280 BC III. ROCKER HOUSING
1
1
3
3
4
5
6
7
7
8
8
8
9
10
10
10
11
11
11
11
11
11
11
12
12
12
12
12
12
12
12
13
13
13
13
13
13
13
13
13
13
15
15
16
16
17
18
19
20
23
24
25
25
26
26
27
28
29
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 3012238 | 3012238 | HOUSING, ROCKER ARM | |
| 65434 | 65434 | SPACER, MOUNTING | |
| MP3887 | MP3887 | COVER, ROCKER HOUSING MTG | |
| 208084 | 208084 | RIVET | |
| 3166098 | 3166098 | BRACKET, LIFING REAR | |
| 4061567 | 4061567 | TUBE, VENT | |
| 208084 | 208084 | RIVET | |
| S626 | S626 | WASHER, LOCK | |
| S605 | S605 | TUBE, BREATHER | |
| S602 | S602 | WASHER, PLAIN | |
| 3418522 | 3418522 | RKR, HSG | |
| 3250977 | 3250977 | TUBE, VENT | |
| 214096 | 214096 | CAP FILLER | |
| 62906С | 62906С | WASHER, LOCK | |
| 1 | 3006183 | COVER, ROCKER LEVER | |
| 3 | 43828 | CLAMP, HOSE | |
| 4 | 64775 | HOSE, PLAIN | |
| 5 | 3006538 | COVER, ROCKER LEVER | |
| 6 | 3038076 | SCREW, CAPTIVE WASHER | |
| 7 | AR6059 | BRACKET, LIFTING | |
| 7 | 1170226 | BRACKET, LIFTING | |
| 8 | 120516 | SCREW, HEXAGON HEAD | |
| 8 | S176 | SCREW, HEXAGON HEAD | |
| 8 | 3012475 | SCREW, HEXAGON HEAD | |
| 9 | 3001726 | BRACKET, LIFING | |
| 10 | 3067459 | GASKET, ROCKER COVER | |
| 11 | 3418527 | LEVER, ROCKER | |
| 11 | 3418523 | LEVER, ROCKER | |
| 11 | 3655785 | LEVER, ROCKER | |
| 11 | 3418539 | LEVER, ROCKER | |
| 11 | 3418528 | LEVER, ROCKER | |
| 11 | 3418538 | LEVER, ROCKER | |
| 12 | 168306 | SCREW, SLOTTED SET | |
| 12 | 168306 | SCREW, SLOTTED SET | |
| 12 | 168306 | SCREW, SLOTTED SET | |
| 13 | S107 | NUT, REGULAR HEXAGON | |
| 13 | S104 | NUT, REGULAR HEXAGON | |
| 13 | S212 | NUT, REGULAR HEXAGON | |
| 13 | S212 | NUT, REGULAR HEXAGON | |
| 13 | S212 | NUT, REGULAR HEXAGON | |
| 15 | 3418540 | LEVER, ROCKER | |
| 16 | 3655786 | LEVER, ROCKER | |
| 17 | S205 | NUT, REGULAR HEXAGON | |
| 18 | 69911A | CLIP | |
| 19 | S604 | SUPPORT, OIL GAUGE TUBE | |
| 20 | 108707 | SCREW, HEXAGON HEAD | |
| 23 | 168319 | SET, SCREW | |
| 24 | 3010589 | SCREW, CAPTIVE WASHER | |
| 25 | 3038903 | PLUG, ROCKER LEVER SHAFT | |
| 26 | 3000521 | SEAL, O RING | |
| 27 | 3418752 | LEVER, ROCKER | |
| 28 | 3017750 | GASKET, RKRLEVER HOUSING | |
| 29 | 3038904 | SHAFT, ROCKER LEVER | |
| 30 | 4913633 | ROCKER& BREATH |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
