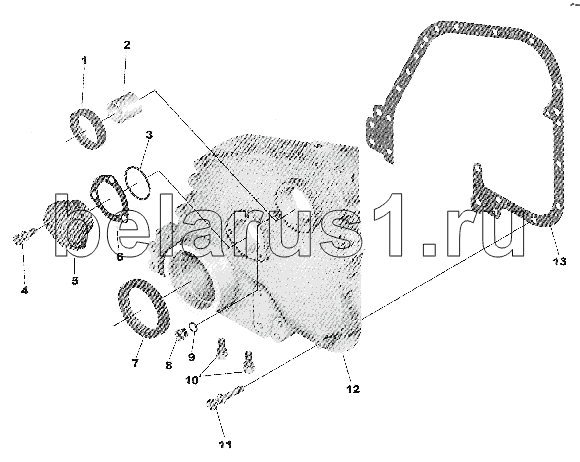

Каталог запасных частей к технике: Cummins NT855-C280 BC III. COVER, GEAR HOUSING
3419270
1
2
3
4
5
6
6
6
6
7
8
8
11
11
11
12
12
13
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 3419270 | 3419270 | COVER, GEAR HOUSING | |
| 3261157 | 3261157 | COVER5GEAR MTG | |
| 60408 | 60408 | DWEL, PIN | |
| 1 | 3020185 | SEAUOiL | |
| 2 | 132770 | BUSHING | |
| 3 | 215705 | SEAL, ORING | |
| 4 | 3011715 | SCREW, CAPTIVE WASHER CAP | |
| 5 | 3008530 | SUPPORT, CAMSHAFT THRUST | |
| 6 | 65259А | SHIM 1 | |
| 6 | 65259В | SHIM 11 | |
| 6 | 65259С | SHIM | |
| 6 | 185573 | SHIM | |
| 7 | 3020186 | SEAL, OIL | |
| 8 | S911В | PLUG, PIPE | |
| 8 | 3008466 | PLUG, PIPE | |
| 11 | 3011714 | SCREW, CAPTIVE WAS | |
| 11 | 100915 | SCREW, CAPTIVE WAS 1 | |
| 11 | 300712 | SCREW, CAPTIVE WAS | |
| 12 | 3325683 | COVER, GEAR | |
| 12 | 3418659 | COVER, GEAR | |
| 13 | 3021704 | GASKET, GEAR COVER | |
| 15 | 70653 | DOWEL |
